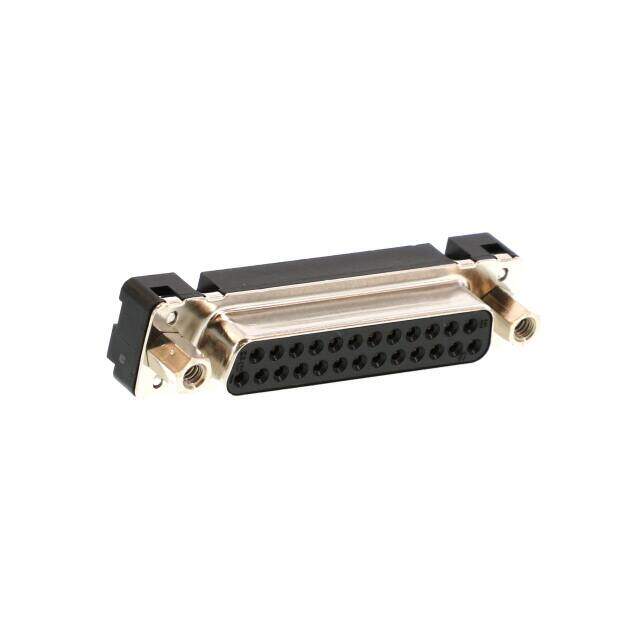

09663517513
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
Connectors; D-Sub; Standard; DSUB SV FEM SSDP STR 25P PL3 GC SLK 4-40
PDF
/
Buying Options
Total Price: USD $6.22
Unit Price: USD $6.220064
≥1 USD $6.220064
≥10 USD $5.867982
≥100 USD $5.535835
≥500 USD $5.222488
≥1000 USD $4.926876
Inventory: 2187
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 25
Orientation Straight
Depth 12.5mm
Current Rating 7.5A
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Dimensions
Length 53.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
