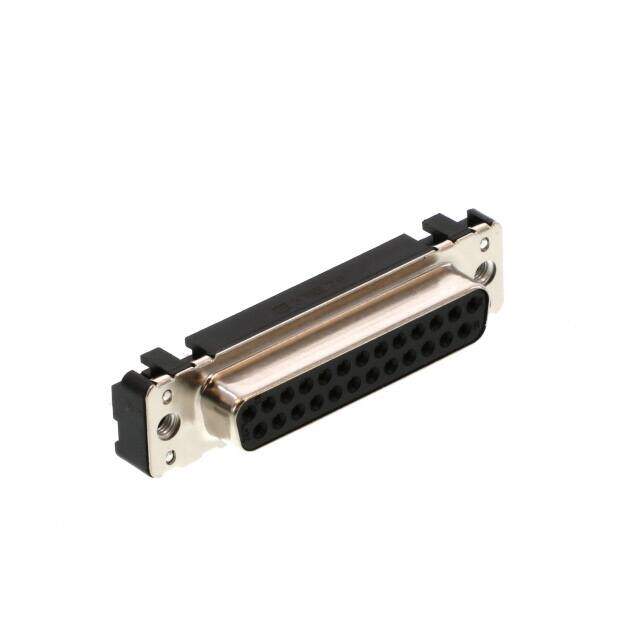

09663517511 image
Favorite
09663517511 image
Favorite

09663517511

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB SV FEM SSDP STR 25P PL3 GC M3
PDF
/
Buying Options
Total Price: USD $8.14
Unit Price: USD $8.14
≥1 USD $8.14
≥10 USD $7.32248
≥100 USD $6.898144
≥500 USD $6.721088
≥1000 USD $6.544208
≥3000 USD $5.83675
Inventory: 170
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 53.2mm

Technical

Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (M3)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 25
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
Termination Solder
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 7 Weeks
