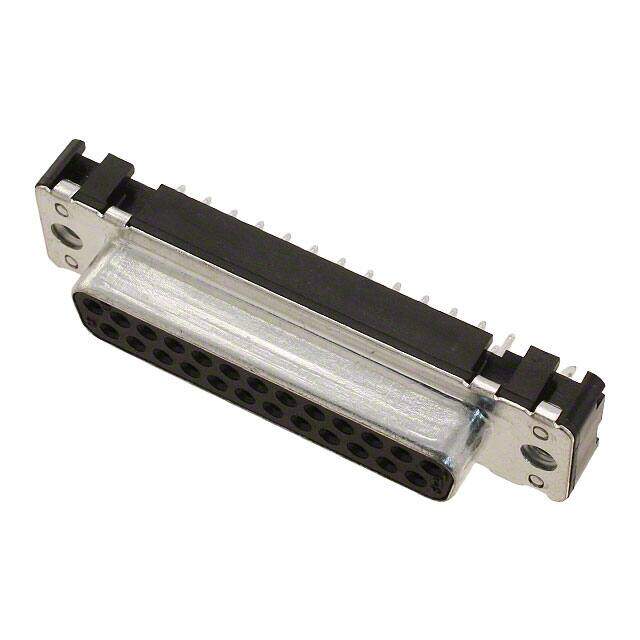

09663516512

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description HARTING - 09 66 351 6512 - BUCHSE,D,LPT,GERADE,25KONT
PDF
/
Buying Options
Total Price: USD $6.38
Unit Price: USD $6.38
≥1 USD $6.38
≥10 USD $5.76664
≥100 USD $5.447904
≥500 USD $5.049176
≥1000 USD $4.517682
≥3000 USD $4.251931
Inventory: 285
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Length 53.2mm
Height 12.5mm

Technical

Test Voltage 1kV
Insulation Insulated
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Body Plating Tin
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Working Voltage 250V
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 6A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 25
Pitch 2.76mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 250V
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
Termination Solder
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Tray
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Body Material Metal
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Insulation Material PBT
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
