09663286700
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

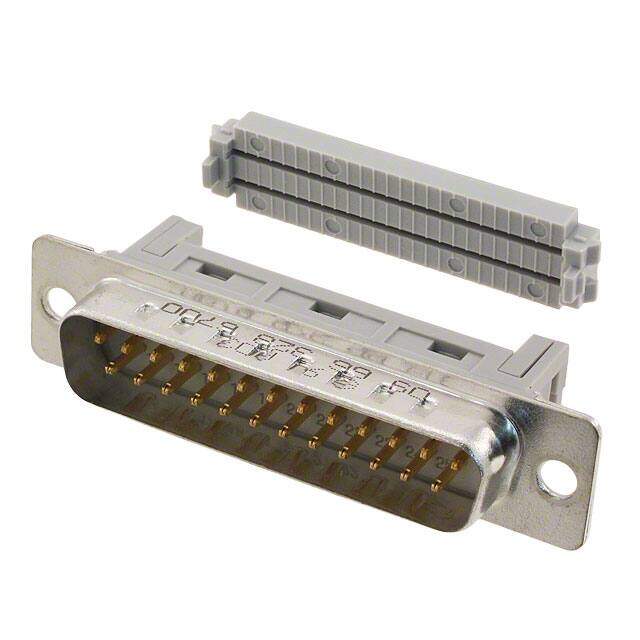

D-Sub Standard Connectors D-SUB 25M-IDC
PDF
/
Buying Options
Total Price: USD $10.52
Unit Price: USD $10.516
≥1 USD $10.516
≥10 USD $9.32448
≥100 USD $8.965792
≥500 USD $8.607104
≥1000 USD $8.129
≥3000 USD $7.411712
Inventory: 115
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 12.55mm
Length 53.09mm
Technical
Test Voltage 1kV
Contact Design PREASSEM CONN
Shell Size, Connector Layout 3 DB B
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.509 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reference Standard UL, CSA
Shell Finish TIN
Current Rating 2A
Depth 18.35mm
Orientation Right Angle
Total Number of Contacts 25
Pitch 2.77mm
Current Rating (Amps) 2A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Voltage - Rated 32V
Gender Male
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination IDC, Ribbon Cable
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Grounding Indents
Packaging Bulk
Physical
Shell Material, Finish Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Package / Case Metal
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
