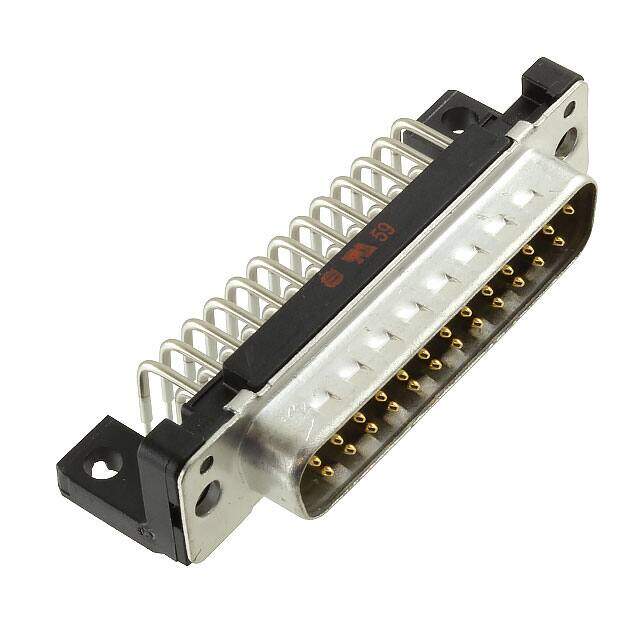

09663226802
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV ML SSDP ANG73-254 25P AU2
PDF
/
Buying Options
Total Price: USD $8.59
Unit Price: USD $8.5888
≥1 USD $8.5888
≥10 USD $7.72728
≥100 USD $7.27936
≥500 USD $7.092624
≥1000 USD $6.905976
≥3000 USD $6.159384
Inventory: 90
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 25
Orientation Right Angle
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.508 inch
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.583 inch
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.409 (10.40mm)
Dimensions
Length 53.1mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
