09663186500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

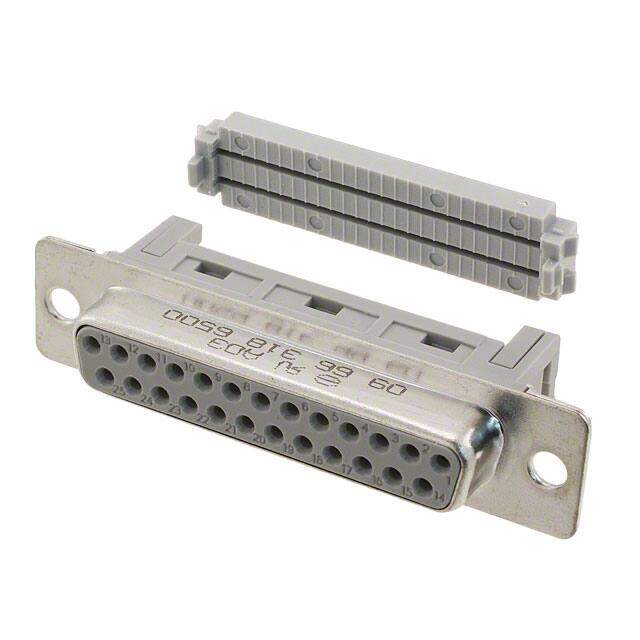

D-Sub Standard Connectors D-SUB 25F-IDC
PDF
/
Buying Options
Total Price: USD $12.69
Unit Price: USD $12.6896
≥1 USD $12.6896
≥10 USD $11.24816
≥100 USD $10.815552
≥500 USD $9.806104
≥1000 USD $8.940888
≥3000 USD $8.364048
Inventory: 113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount
Material Liquid Crystal Polymer, Polymer
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material, Finish Steel
Technical
Packaging Tray
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
Termination IDC, Ribbon Cable
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Number of Rows 2
Gender Receptacle
Voltage - Rated 32V
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Pitch 2.77mm
Total Number of Contacts 25
Orientation Right Angle
Depth 12.55mm
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL, CSA
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.509 inch
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 28 AWG
Shell Size, Connector Layout 3 DB B
Contact Design PREASSEM CONN
Test Voltage 1kV
Dimensions
Height 12.55mm
Length 53.09mm
Width 18.2mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
