09663126602
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

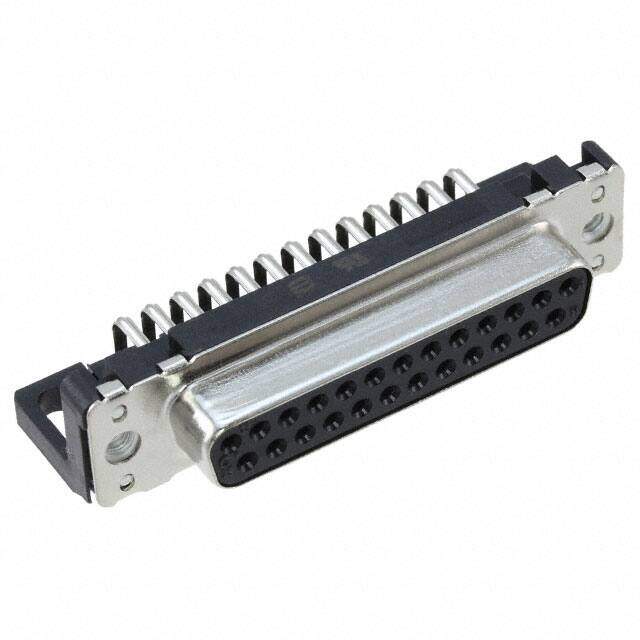

D-Sub Standard Connectors DSUB SV FEM SSDP ANG73-284 09P
PDF
/
Buying Options
Total Price: USD $7.31
Unit Price: USD $7.3128
≥1 USD $7.3128
≥10 USD $6.61584
≥100 USD $6.24976
≥500 USD $6.097168
≥1000 USD $5.792336
≥3000 USD $5.182584
Inventory: 184
Minimum: 1
-
+
Technical Details
Technical
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.409 (10.40mm)
Test Voltage 1kV
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (4-40)
Body Depth 0.583 inch
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Orientation Right Angle
Total Number of Contacts 25
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Female
Number of Rows 2
Number of Positions 25
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length 53.2mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
