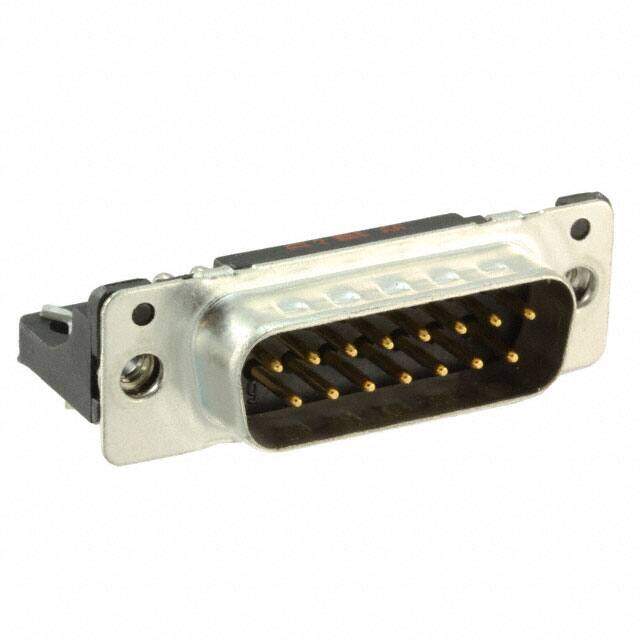

D-Sub Standard Connectors DSUB SV ML SSDP ANG36-254 15P AU3
PDF
/
Buying Options
Total Price: USD $7.1
Unit Price: USD $7.1016
≥1 USD $7.1016
≥10 USD $6.42224
≥100 USD $6.067424
≥500 USD $5.623464
≥1000 USD $5.031488
≥3000 USD $4.735526
Inventory: 2648
Minimum: 1
-
+
Technical Details
Technical
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.108 inch
Flange Feature Housing/Shell (4-40)
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Body Depth 0.551 inch
Empty Shell NO
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Body Length or Diameter 1.543 inch
Reference Standard UL
Shell Finish TIN
Total Number of Contacts 15
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Number of Rows 2
Number of Positions 15
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Tray
Operating Temperature -55°C~125°C
Shell Size, Connector Layout 2 DA A
Contact Form Machined
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.114 inch
Alternative Model
