Category Connectors, Interconnects / D-Sub Connectors
Description

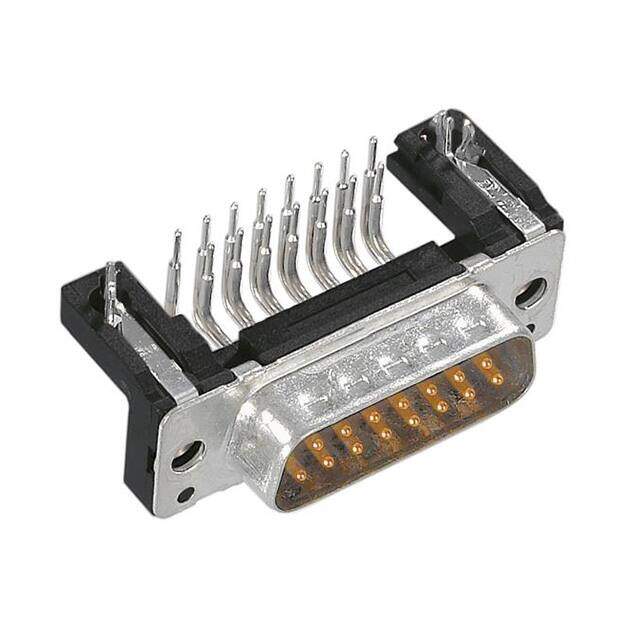

D-Sub Standard Connectors DSUB SV ML SSDP ANG73-254 15P AU2
PDF
/
Buying Options
Total Price: USD $7.26
Unit Price: USD $7.26434
≥1 USD $7.26434
≥10 USD $6.853153
≥100 USD $6.465232
≥500 USD $6.099282
≥1000 USD $5.754037
Inventory: 7414
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 14.8mm
Length 39.2mm
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Machined
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.508 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Depth 12.9mm
Orientation Right Angle
Total Number of Contacts 15
Pitch 2.74mm
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Number of Terminations 15
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
