09662556513
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

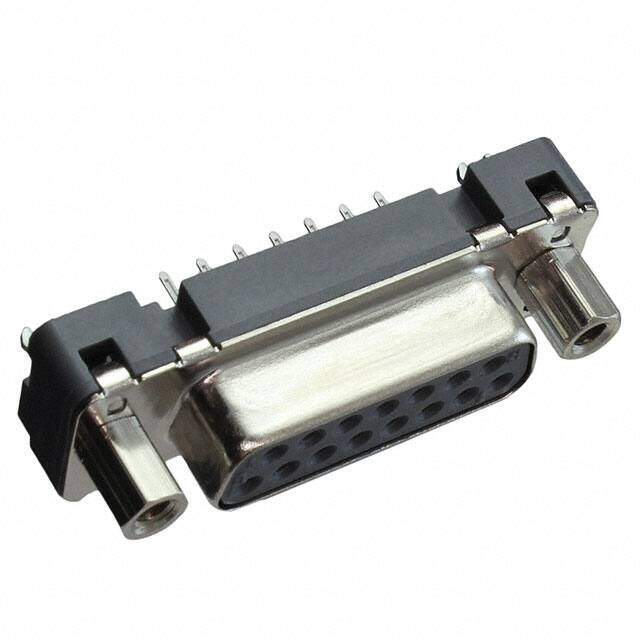

D-Sub Standard Connectors DSUB SV FEM SSDP STR29 15P
PDF
/
Buying Options
Total Price: USD $7.3
Unit Price: USD $7.2952
≥1 USD $7.2952
≥10 USD $6.59648
≥100 USD $6.231456
≥500 USD $6.079392
≥1000 USD $5.77544
≥3000 USD $5.167474
Inventory: 117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Housing Material Glass
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
HTS Code 8536.69.40.30
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 15
Orientation Straight
Depth 12.5mm
Shell Finish TIN
Reference Standard UL
Contact Finish Gold
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 2 DA A
Dimensions
Length 39.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
