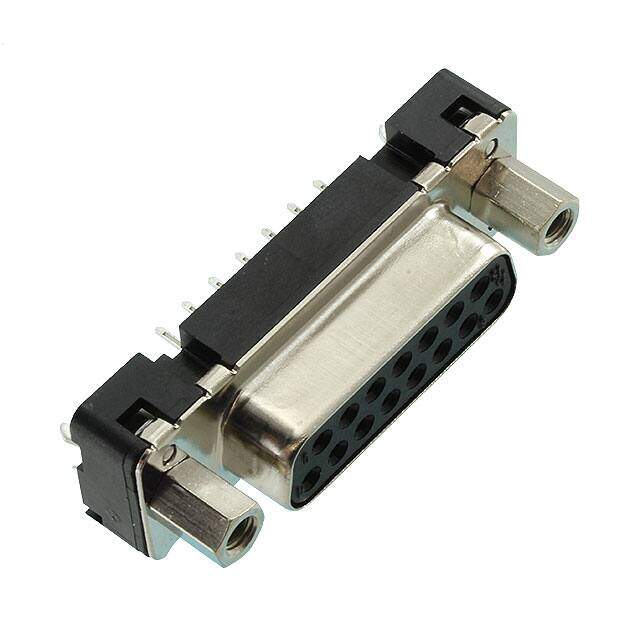

09662515513 image
Favorite
09662515513 image
Favorite

09662515513

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB SV FEM SSDP STR 15P
PDF
/
Buying Options
Total Price: USD $4.98
Unit Price: USD $4.9808
≥1 USD $4.9808
≥10 USD $4.50032
≥100 USD $4.251104
≥500 USD $4.147616
≥1000 USD $3.9402
≥3000 USD $3.651006
Inventory: 727
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
HTS Code 8536.69.40.30
MIL Conformance YES
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 15
Shell Finish TIN
Contact Finish Gold
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 2 DA A

Dimensions

Contact Finish Thickness 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
