09662287700
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

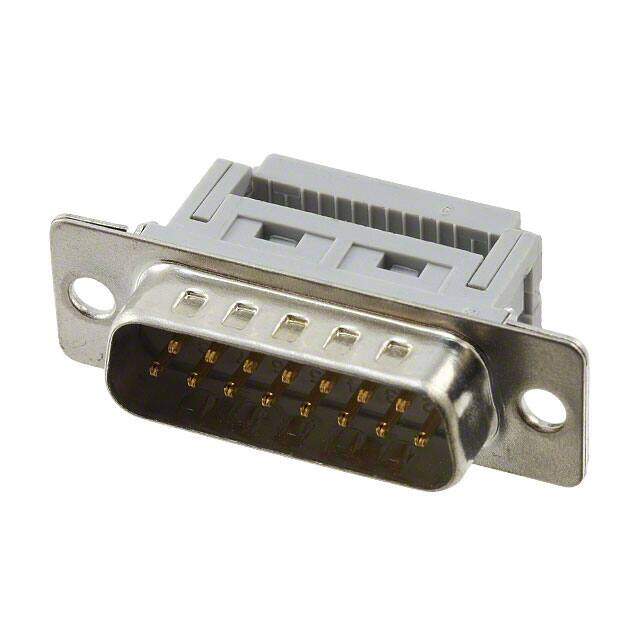

D Sub Connector, 15 Contacts, Plug, IDC / IDT, DA, Metal Body
PDF
/
Buying Options
Total Price: USD $9.69
Unit Price: USD $9.6888
≥1 USD $9.6888
≥10 USD $8.7208
≥100 USD $8.215328
≥500 USD $8.00448
≥1000 USD $7.793896
≥3000 USD $6.951296
Inventory: 194
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Contact Design PREASSEM CONN
Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 1A
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.509 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Lead Pitch 2.77mm
Body Length or Diameter 1.556 inch
Reference Standard UL, CSA
Shell Finish TIN
Current Rating 2A
Total Number of Contacts 15
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 15
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination IDC, Ribbon Cable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Grounding Indents
Packaging Bulk
Physical
Shell Material, Finish Steel
Body Material Metal
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
