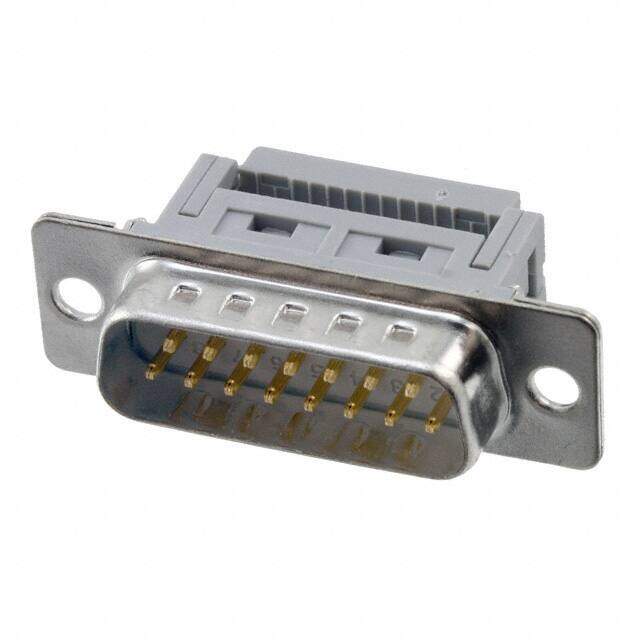

09662286700
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors D-SUB 15M-IDC
PDF
/
Buying Options
Total Price: USD $6.4
Unit Price: USD $6.3976
≥1 USD $6.3976
≥10 USD $5.7552
≥100 USD $5.421856
≥500 USD $5.28264
≥1000 USD $5.143688
≥3000 USD $4.895
Inventory: 434
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Panel Mount
Package / Case Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Packaging Bulk
Feature Feed Through, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 15
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Male
Voltage - Rated 32V
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Pitch 2.77mm
Total Number of Contacts 15
Orientation Right Angle
Depth 12.55mm
Current Rating 1A
Shell Finish TIN
Reference Standard UL, CSA
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.509 inch
UL Flammability Code 94V-0
Empty Shell NO
Insulation Resistance 1000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style RECEPTACLE
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Contact Design PREASSEM CONN
Dimensions
Length 39.1mm
Width 18.35mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
