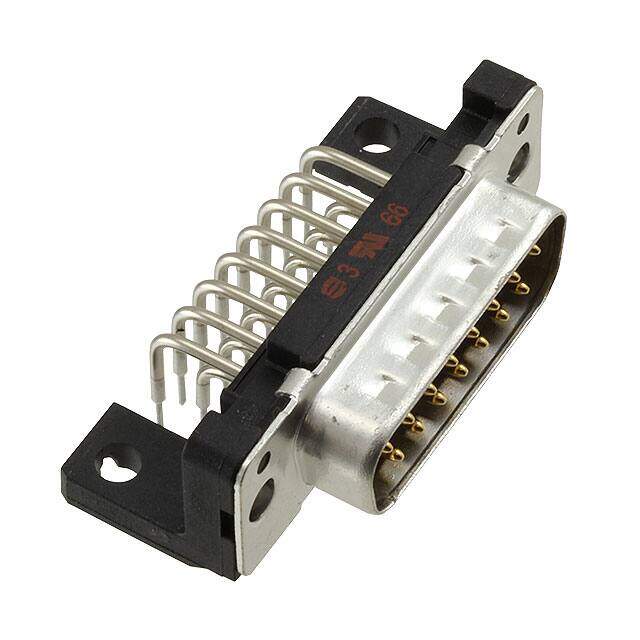

09662227801
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV ML SSDP ANG73-254 15P AU3
PDF
/
Buying Options
Total Price: USD $6.35
Unit Price: USD $6.3536
≥1 USD $6.3536
≥10 USD $5.74728
≥100 USD $5.4296
≥500 USD $5.297248
≥1000 USD $5.032368
≥3000 USD $4.50267
Inventory: 194
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 15
Orientation Right Angle
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.508 inch
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.583 inch
Flange Feature Housing/Shell (M3)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 2 DA A
Backset Spacing 0.409 (10.40mm)
Dimensions
Length 39.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
