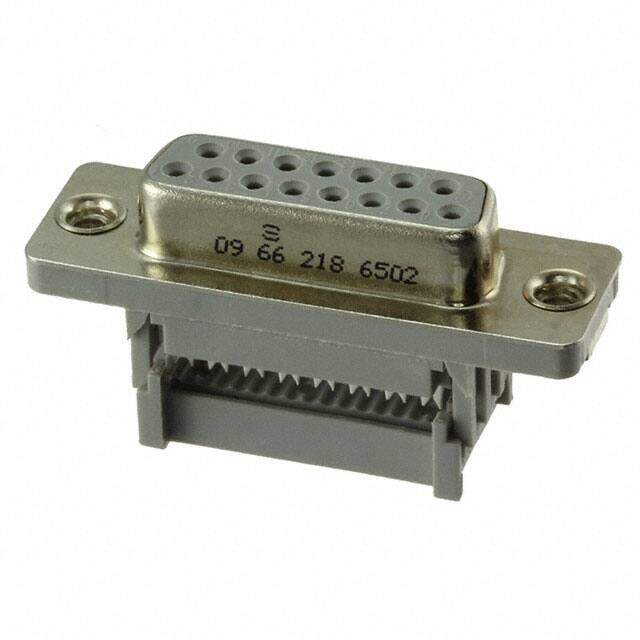

09662186502
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors D SUB SV FEM IDC 09 AU2 WITH 4-40 NUT
PDF
/
Buying Options
Total Price: USD $9.42
Unit Price: USD $9.4248
≥1 USD $9.4248
≥10 USD $8.48144
≥100 USD $7.989696
≥500 USD $7.785008
≥1000 USD $7.580144
≥3000 USD $6.760662
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Packaging Bulk
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 15
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Number of Rows 2
HTS Code 8536.69.40.30
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Total Number of Contacts 15
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
