09662117503
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

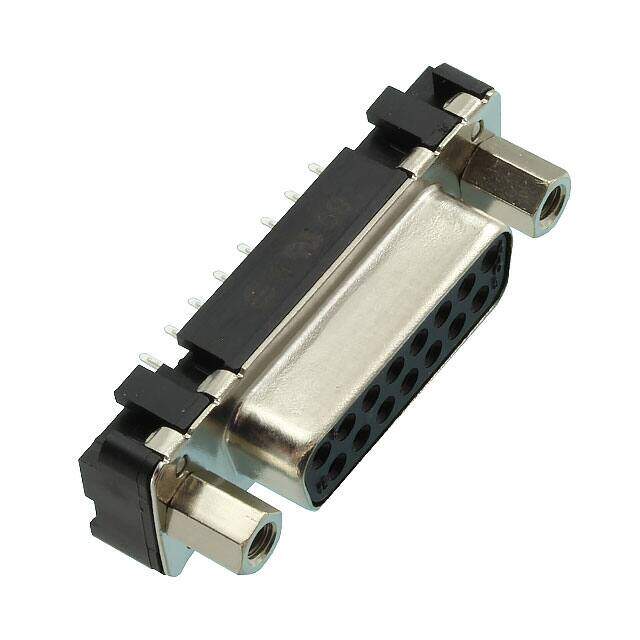

Harting Device Connectivity - 09662117503
PDF
/
Buying Options
Total Price: USD $3.31
Unit Price: USD $3.3088
≥1 USD $3.3088
≥10 USD $3.00696
≥100 USD $2.84768
≥500 USD $2.78168
≥1000 USD $2.649152
≥3000 USD $2.332
Inventory: 28
Minimum: 1
-
+
Technical Details
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Length 39.5mm
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Depth 12.5mm
Orientation Straight
Total Number of Contacts 15
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Number of Rows 2
Number of Positions 15
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
