09662116502

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

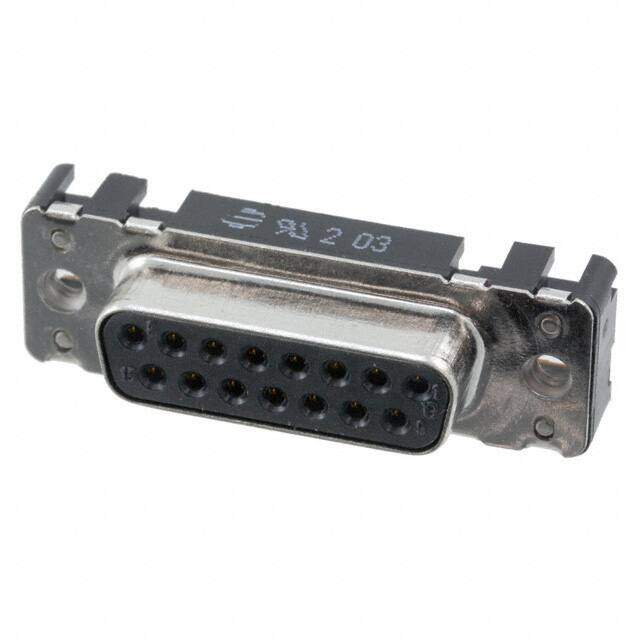

Description D-Sub Standard Connectors DSUB SV FEM SSDP STR15P PL2 NUT 4-40
PDF
/
Buying Options
Total Price: USD $5.26
Unit Price: USD $5.2624
≥1 USD $5.2624
≥10 USD $4.78192
≥100 USD $4.528832
≥500 USD $4.423584
≥1000 USD $4.212912
≥3000 USD $3.686294
Inventory: 139
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 39.5mm

Technical

Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 15
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Number of Rows 2
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Number of Terminations 15
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 7 Weeks

Alternative Model
