09661646716
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

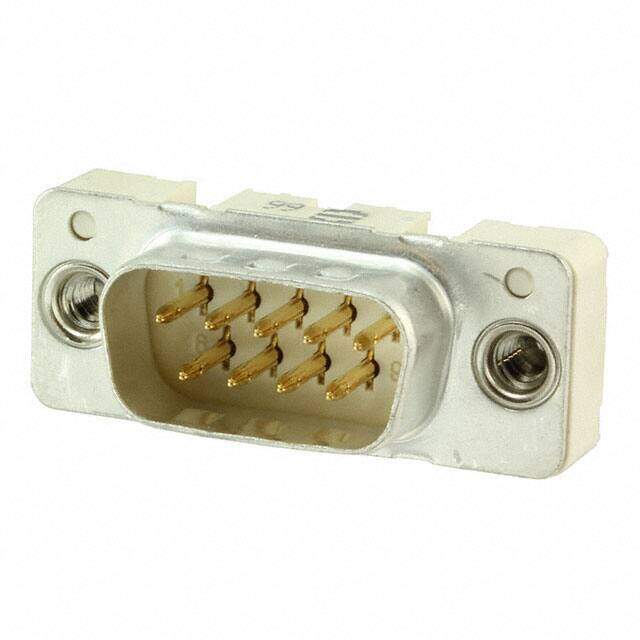

D-Sub Standard Connectors DSUB SV ML-5,7 PR-IN 09P AU2 GP 4-40
PDF
/
Buying Options
Total Price: USD $6.91
Unit Price: USD $6.908
≥1 USD $6.908
≥10 USD $6.24888
≥100 USD $5.903392
≥500 USD $5.759424
Inventory: 128
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 9
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
