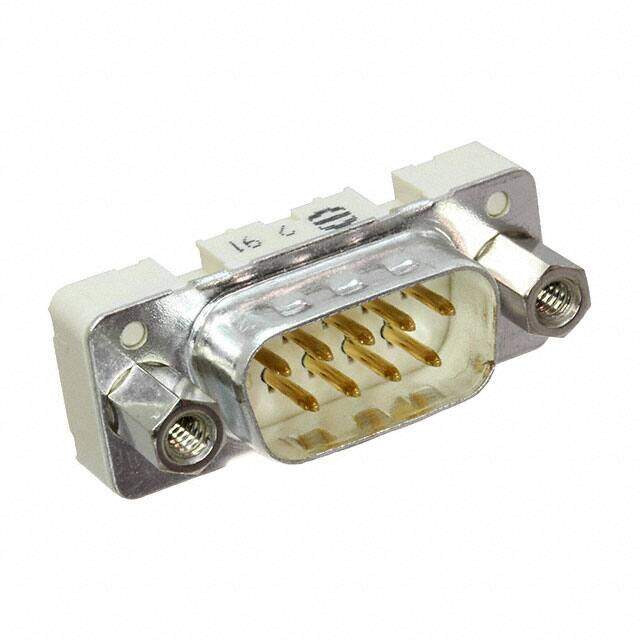

09661546517

HARTING
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB SV FEM5,7 PR-IN 09P AU2 GP SKL 4-40
PDF
/
Inventory: 4143
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 31.12mm

Technical

Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Depth 12.5mm
Orientation Straight
Total Number of Contacts 9
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Number of Rows 2
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Housing Material Polymer
Dielectric Material Liquid Crystal Polymer (LCP)
Package / Case Metal
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 7 Weeks
