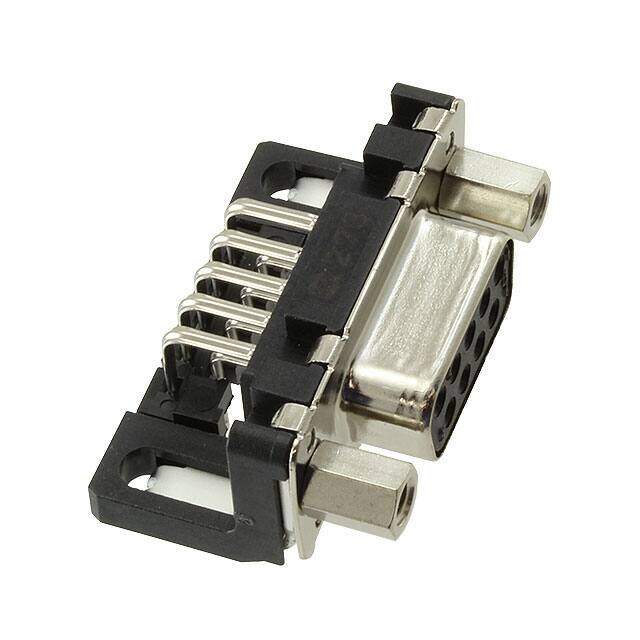

09661536613
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB FE ANG 09P AU2
PDF
/
Buying Options
Total Price: USD $5.36
Unit Price: USD $5.3592
≥1 USD $5.3592
≥10 USD $4.862
≥100 USD $4.605216
≥500 USD $4.498208
≥1000 USD $4.284016
≥3000 USD $3.74851
Inventory: 62
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Gender Receptacle
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 9
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Body Depth 0.583 inch
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Flange Feature Mating Side, Female Screwlock (4-40)
Mating Contact Pitch 0.108 inch
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.409 (10.40mm)
Dimensions
Length - Termination 0.114 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
