Category Connectors, Interconnects / D-Sub Connectors
Description

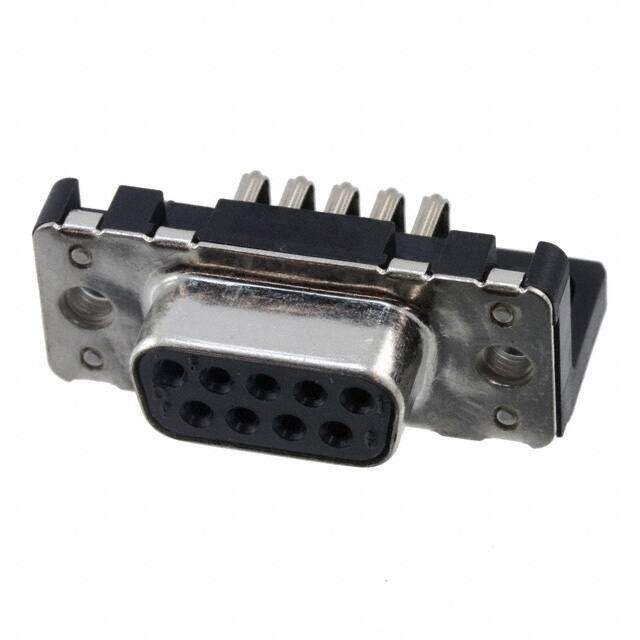

D-Sub Standard Series, 9 Way Right AngleMount PCB D-sub Conn Socket, 2.74mm Pitch
PDF
/
Buying Options
Total Price: USD $4.82
Unit Price: USD $4.8224
≥1 USD $4.8224
≥10 USD $4.378
≥100 USD $4.14656
≥500 USD $3.857392
≥1000 USD $3.375214
≥3000 USD $3.278774
Inventory: 116
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 15mm
Length 31.2mm
Technical
Test Voltage 1kV
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (M3)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Depth 12.5mm
Orientation Right Angle
Total Number of Contacts 9
Pitch 2.54mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
Termination Solder
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Thermoplastic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
Alternative Model
