09661515513
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

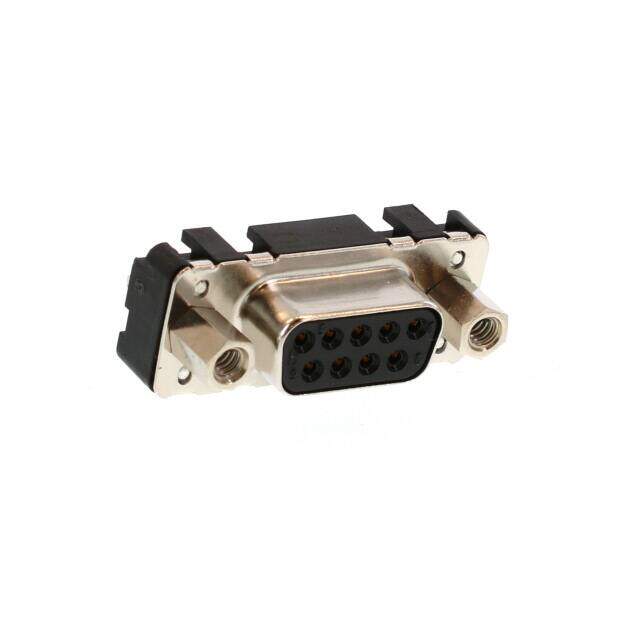

D-Sub Standard Connectors DSUB SV FEM SSDP STR 09P
PDF
/
Buying Options
Total Price: USD $4.1
Unit Price: USD $4.1008
≥1 USD $4.1008
≥10 USD $3.70656
≥100 USD $3.502048
≥500 USD $3.416512
≥1000 USD $3.245616
≥3000 USD $3.007462
Inventory: 416
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Technical
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Connector Style D-Sub
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
Contact Finish Gold
Shell Finish TIN
Total Number of Contacts 9
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance YES
Number of Rows 2
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
