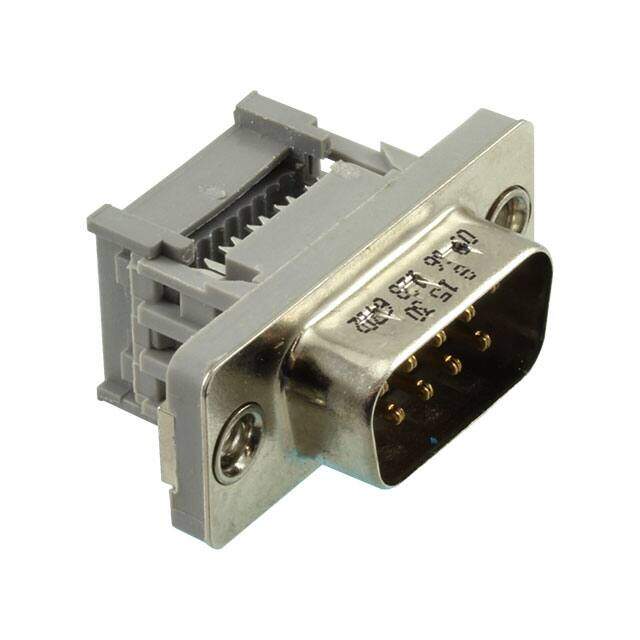

09661286702
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors D SUB SV ML IDC 09 AU2 WITH 4-40 NUT
PDF
/
Buying Options
Total Price: USD $7.52
Unit Price: USD $7.524
≥1 USD $7.524
≥10 USD $6.77072
≥100 USD $6.377888
≥500 USD $6.21456
≥1000 USD $6.050968
≥3000 USD $5.396802
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 30.8mm
Technical
Shell Size, Connector Layout 1 DE E
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Depth 20.8mm
Orientation Right Angle
Total Number of Contacts 9
Current Rating (Amps) 2A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Number of Rows 2
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Connector Type Plug, Male Pins
Termination IDC, Ribbon Cable
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Grounding Indents
Packaging Bulk
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
