09661286700
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

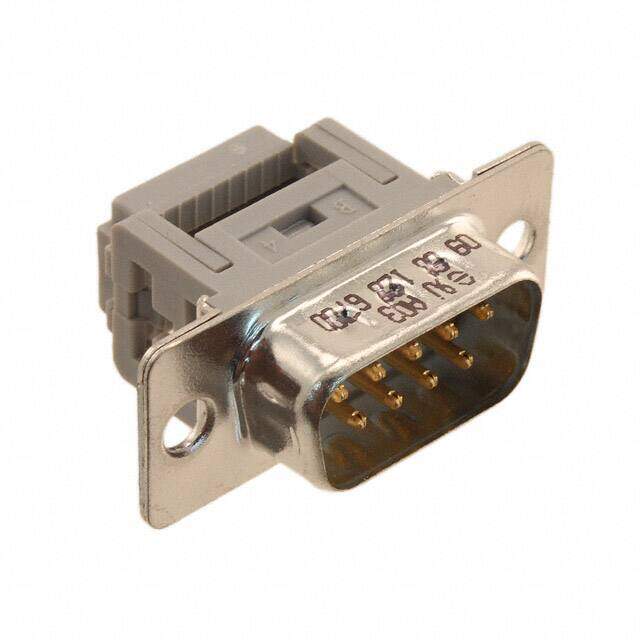

D-Sub Standard Connectors D-SUB 9M-IDC
PDF
/
Buying Options
Total Price: USD $8.75
Unit Price: USD $8.7472
≥1 USD $8.7472
≥10 USD $7.87424
≥100 USD $7.418048
≥500 USD $7.227792
≥1000 USD $7.037536
≥3000 USD $6.276714
Inventory: 65
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material, Finish Steel
Technical
Packaging Bulk
Feature Feed Through, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination IDC, Ribbon Cable
Connector Type Plug, Male Pins
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Number of Rows 2
Gender Male
Voltage - Rated 32V
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Pitch 2.77mm
Total Number of Contacts 9
Orientation Right Angle
Depth 12.55mm
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL, CSA
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 1 DE E
Contact Design PREASSEM CONN
Test Voltage 1kV
Dimensions
Height 12.55mm
Length 30.8mm
Width 18.35mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
