09661217703
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

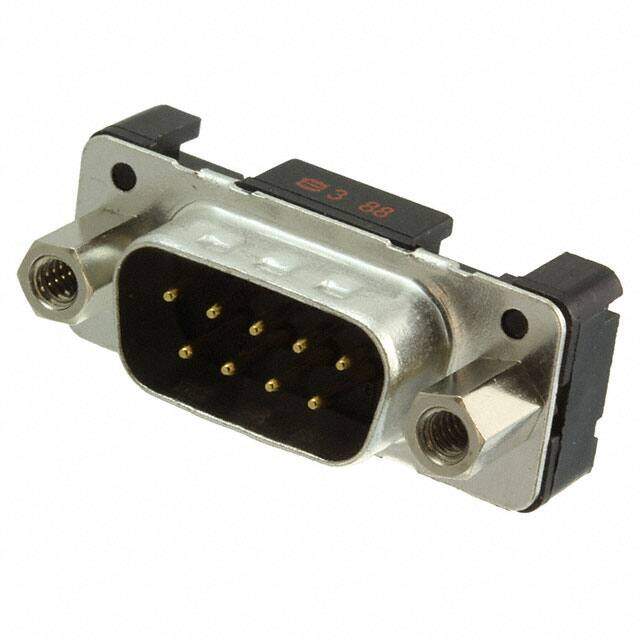

D-Sub Standard Connectors DSUB SV ML SSDP STR 09P AU3
PDF
/
Buying Options
Total Price: USD $4.91
Unit Price: USD $4.9104
≥1 USD $4.9104
≥10 USD $4.45896
≥100 USD $4.223296
≥500 USD $4.124912
≥1000 USD $3.928496
≥3000 USD $3.43743
Inventory: 146
Minimum: 1
-
+
Technical Details
Technical
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Gender Male
Voltage - Rated 1kV
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.74mm
Total Number of Contacts 9
Orientation Straight
Depth 12.9mm
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.508 inch
Empty Shell NO
Rated Current (Signal) 6.5A
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Flange Feature Mating Side, Female Screwlock (4-40)
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Body/Shell Style RECEPTACLE
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
Dimensions
Length 30.9mm
Width 6.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
