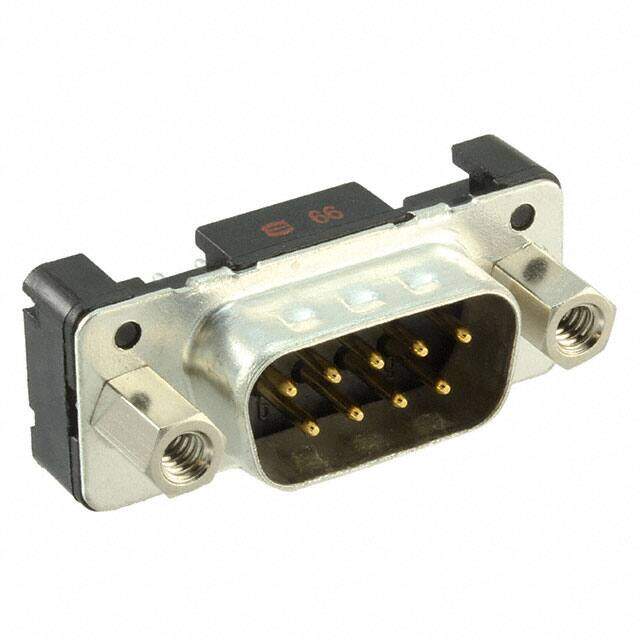

09661216703
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV ML SSDP STR 09P AU2
PDF
/
Buying Options
Total Price: USD $7.89
Unit Price: USD $7.8936
≥1 USD $7.8936
≥10 USD $7.1016
≥100 USD $6.690112
≥500 USD $6.518512
≥1000 USD $6.346912
≥3000 USD $5.660776
Inventory: 148
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 30.9mm
Height 6.2mm
Technical
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
Body Breadth 0.508 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Depth 12.9mm
Orientation Straight
Total Number of Contacts 9
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Female
Number of Rows 2
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 17 Weeks
