09661186502
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

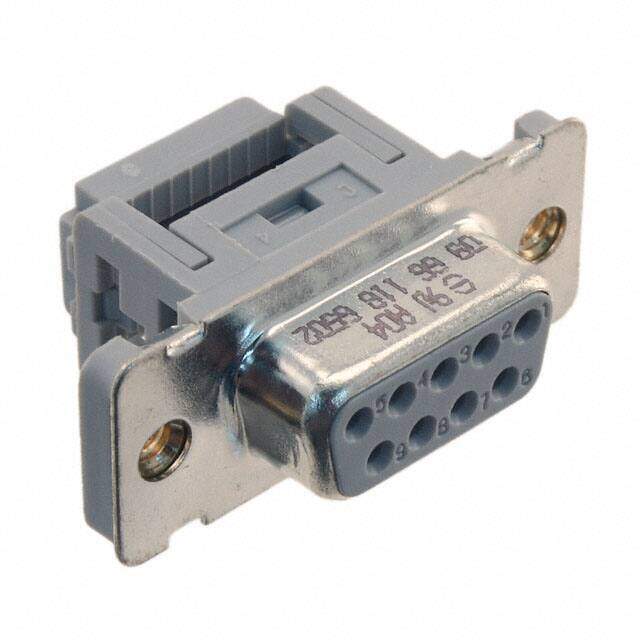

D-Sub Standard Connectors D SUB SV FE IDC 09 AU2 WITH 4-40 NUT
PDF
/
Buying Options
Total Price: USD $8.85
Unit Price: USD $8.8528
≥1 USD $8.8528
≥10 USD $7.96664
≥100 USD $7.50464
≥500 USD $7.312114
≥1000 USD $7.119737
≥3000 USD $6.350045
Inventory: 153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Packaging Bulk
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination IDC, Ribbon Cable
Connector Type Receptacle, Female Sockets
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 2
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Total Number of Contacts 9
Orientation Right Angle
Depth 20.65mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 1 DE E
Dimensions
Length 30.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
