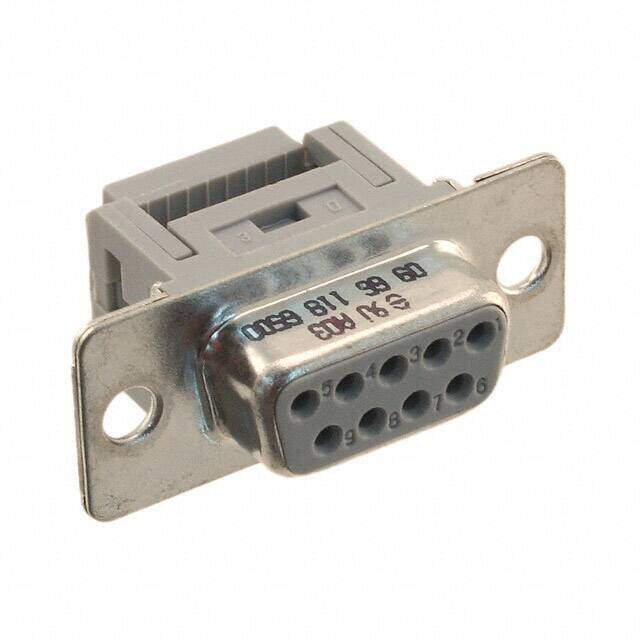

09661186500
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors D-SUB 9F-IDC
PDF
/
Buying Options
Total Price: USD $9.41
Unit Price: USD $9.4072
≥1 USD $9.4072
≥10 USD $8.46296
≥100 USD $7.972448
≥500 USD $7.768112
≥1000 USD $7.563688
≥3000 USD $6.745992
Inventory: 131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Panel Mount
Package / Case Metal
Material Liquid Crystal Polymer, Polymer
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Packaging Bulk
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination IDC, Ribbon Cable
Connector Type Receptacle, Female Sockets
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Number of Rows 2
Gender Receptacle
Voltage - Rated 32V
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Pitch 2.77mm
Total Number of Contacts 9
Orientation Right Angle
Depth 18.2mm
Current Rating 2A
Shell Finish TIN
Reference Standard UL, CSA
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 1 DE E
Contact Design PREASSEM CONN
Test Voltage 1kV
Dimensions
Height 12.55mm
Length 30.8mm
Width 12.55mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
