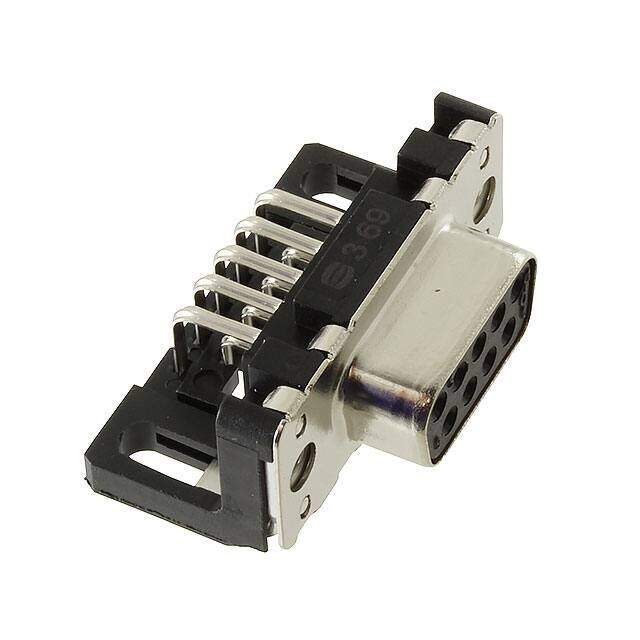

09661127601
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV FEM SSDP ANG73-254 09P
PDF
/
Buying Options
Total Price: USD $3.49
Unit Price: USD $3.489692
≥1 USD $3.489692
≥10 USD $3.292159
≥100 USD $3.105819
≥500 USD $2.930009
≥1000 USD $2.764163
Inventory: 7188
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Receptacle
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.74mm
Total Number of Contacts 9
Orientation Right Angle
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Body Depth 0.583 inch
Flange Feature Housing/Shell (M3)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.409 (10.40mm)
Dimensions
Length 31.2mm
Width 13.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
