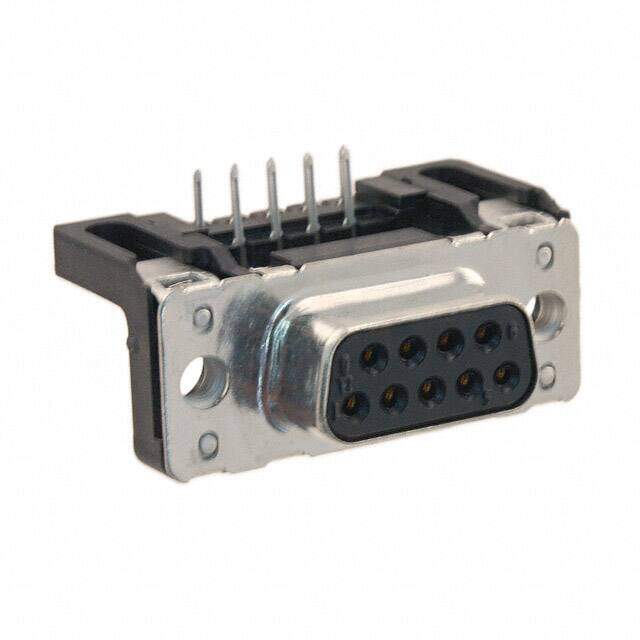

09661126601
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
Connectors; D-Sub; Standard; DSUB SV FEM SSDP ANG73-254 09
PDF
/
Buying Options
Total Price: USD $4.2
Unit Price: USD $4.204305
≥1 USD $4.204305
≥10 USD $3.96633
≥100 USD $3.741818
≥500 USD $3.530015
≥1000 USD $3.330208
Inventory: 1417
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.114 inch
Technical
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style PLUG
Flange Feature Housing/Shell (M3)
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Body Depth 0.583 inch
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Orientation Right Angle
Total Number of Contacts 9
Pitch 2.54mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 2
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
