09654625812
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

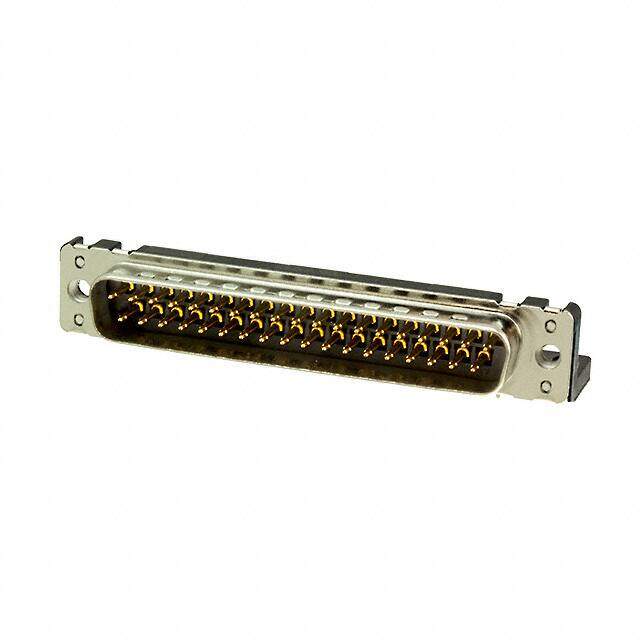

D-Sub Standard Connectors DSUB SV ML SSDP ANG73-254 37P
PDF
/
Buying Options
Total Price: USD $10.93
Unit Price: USD $10.9296
≥1 USD $10.9296
≥10 USD $9.6888
≥100 USD $9.31568
≥500 USD $8.943088
≥1000 USD $8.44624
≥3000 USD $7.701021
Inventory: 90
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Technical
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 4 DC C
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
Contact Finish Gold
Shell Finish TIN
Total Number of Contacts 37
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance YES
Number of Rows 2
Number of Positions 37
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
