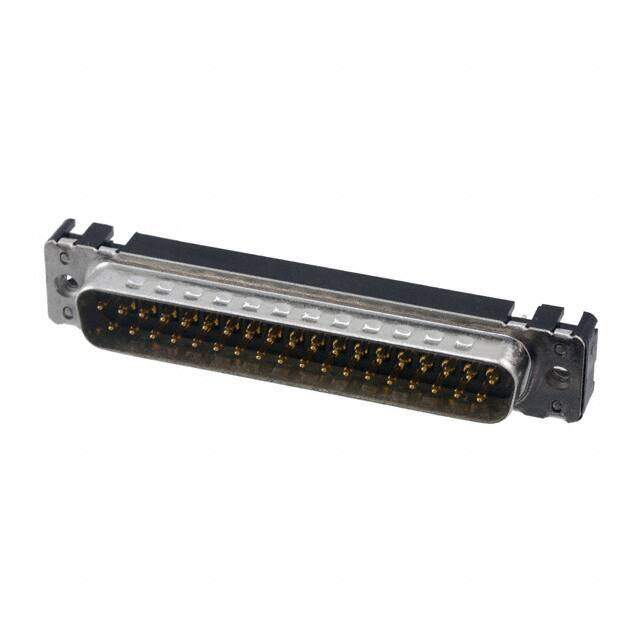

09654216702
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
Connectors; D-Sub; Standard; DSUB SV ML SSDP STR 37P PL2 NUT 4-40
PDF
/
Buying Options
Total Price: USD $6.76
Unit Price: USD $6.7584
≥1 USD $6.7584
≥10 USD $6.11424
≥100 USD $5.775968
≥500 USD $5.634992
≥1000 USD $5.353216
≥3000 USD $4.789734
Inventory: 76
Minimum: 1
-
+
Technical Details
Technical
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 37
Orientation Straight
Depth 12.5mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 4 DC C
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Number of Rows 2
Number of Positions 37
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Tray
Operating Temperature -55°C~125°C
Dimensions
Length 69.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
