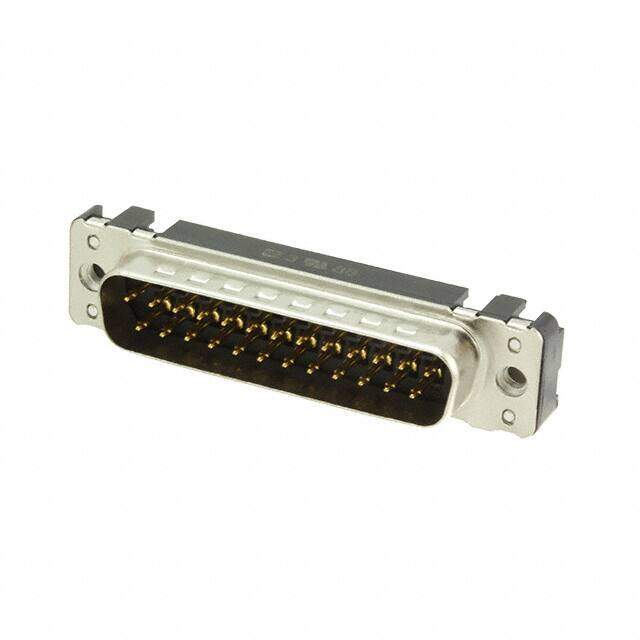

09653617712
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV ML SSDP STR 25P PL3 GC 4-40
PDF
/
Buying Options
Total Price: USD $3.57
Unit Price: USD $3.5728
≥1 USD $3.5728
≥10 USD $3.24808
≥100 USD $3.076128
≥500 USD $3.004672
≥1000 USD $2.861584
≥3000 USD $2.519
Inventory: 100
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Total Number of Contacts 25
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Male
Number of Rows 2
Number of Positions 25
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
