09653616712
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

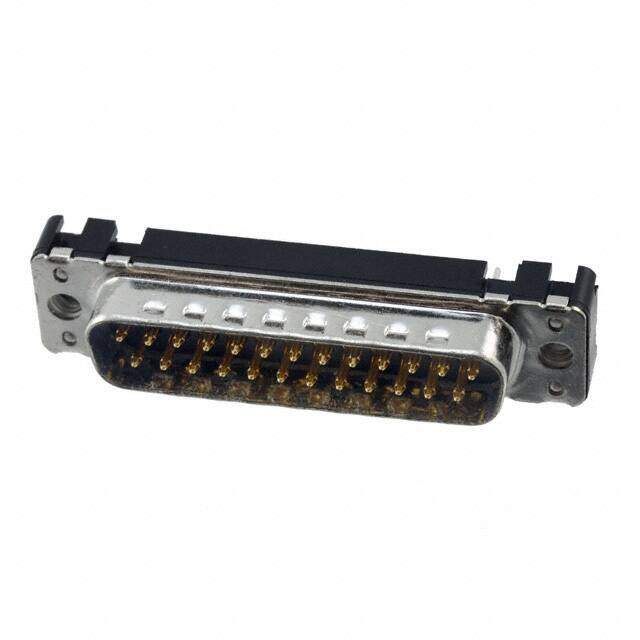

CONN D-SUB PLUG 25POS VERT SLDR
PDF
/
Buying Options
Total Price: USD $6.08
Unit Price: USD $6.0808
≥1 USD $6.0808
≥10 USD $5.49824
≥100 USD $5.194464
≥500 USD $4.81448
≥1000 USD $4.307662
≥3000 USD $4.054266
Inventory: 157
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 53.2mm
Technical
Test Voltage 1kV
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Body Plating Tin
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Working Voltage 250V
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 25
Pitch 2.76mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 250V
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Body Material Metal
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
