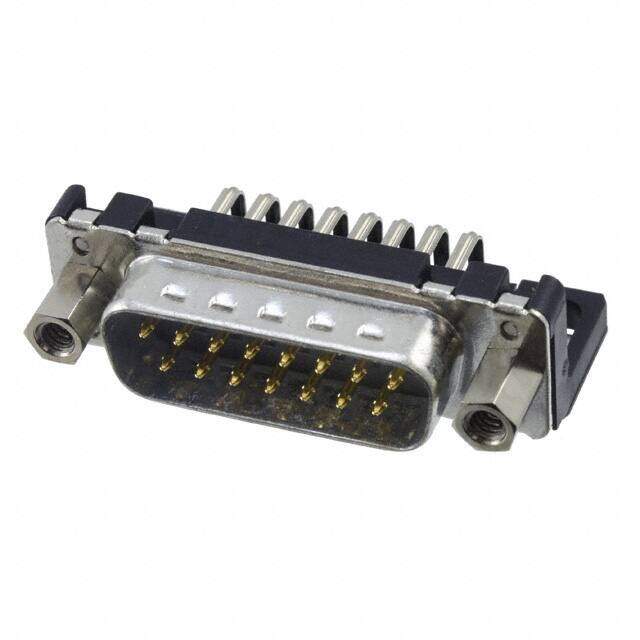

09652626813 image
Favorite
09652626813 image
Favorite

09652626813

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description 15 Way Right Angle Through Hole Mount PCB D-sub Connector Plug; 2.74mm Pitch
PDF
/
Buying Options
Total Price: USD $5.57
Unit Price: USD $5.5704
≥1 USD $5.5704
≥10 USD $5.0336
≥100 USD $4.75552
≥500 USD $4.639536
≥1000 USD $4.407568
≥3000 USD $3.943606
Inventory: 124
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 15
Termination Solder
Connector Type Plug, Male Pins
Number of Rows 2
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.54mm
Total Number of Contacts 15
Orientation Right Angle
Current Rating 6A
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 2 DA A
Backset Spacing 0.409 (10.40mm)
Test Voltage 1kV

Dimensions

Height 12.5mm
Length 39.5mm
Width 13.6mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
