09652626812
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

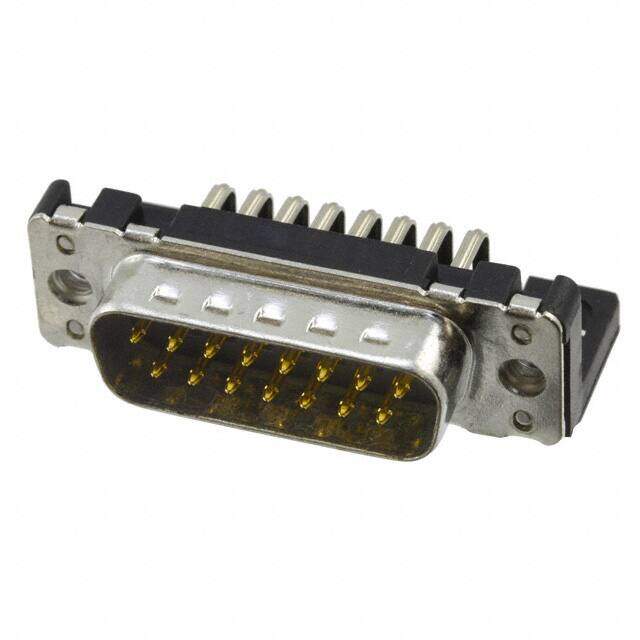

CONN D-SUB PLUG 15POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $5.26
Unit Price: USD $5.2624
≥1 USD $5.2624
≥10 USD $4.77752
≥100 USD $4.52496
≥500 USD $4.209128
≥1000 USD $3.682976
≥3000 USD $3.577746
Inventory: 1007
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 13.6mm
Length 39.5mm
Height 12.5mm
Technical
Test Voltage 1kV
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Body Plating Tin
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (4-40)
Insulation Resistance 5000000000Ohm
Working Voltage 250V
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.535 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Orientation Right Angle
Total Number of Contacts 15
Pitch 2.54mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 250V
Subcategory D Type Connectors
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
Termination Solder
Number of Terminations 15
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Body Material Metal
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
