09652616712
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

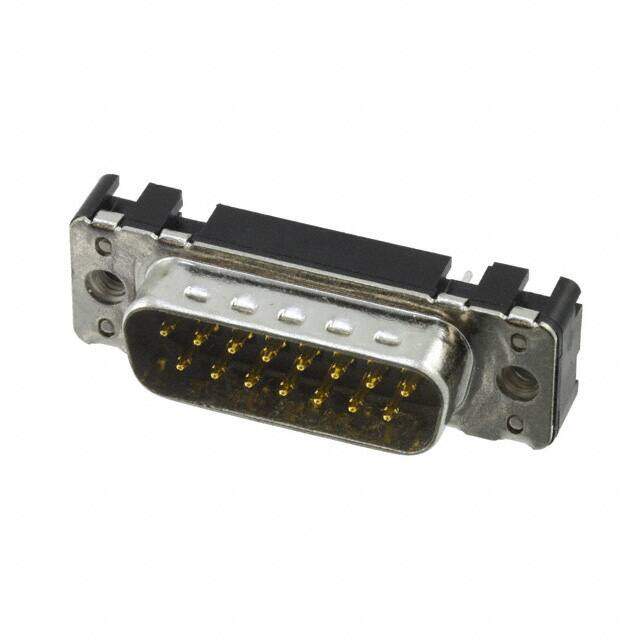

Conn D-Subminiature M 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $5.26
Unit Price: USD $5.2624
≥1 USD $5.2624
≥10 USD $4.78192
≥100 USD $4.528832
≥500 USD $4.423584
≥1000 USD $4.212912
≥3000 USD $3.686294
Inventory: 161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Shell Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Body Material Metal
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 15
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Voltage - Rated DC 250V
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.74mm
Total Number of Contacts 15
Orientation Straight
Depth 12.5mm
Current Rating 7.5A
UL Flammability Code 94V-0
Empty Shell NO
Working Voltage 250V
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Contact Form Stamped
Shell Size, Connector Layout 2 DA A
Test Voltage 1kV
Dimensions
Height 12.5mm
Length 39.5mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
