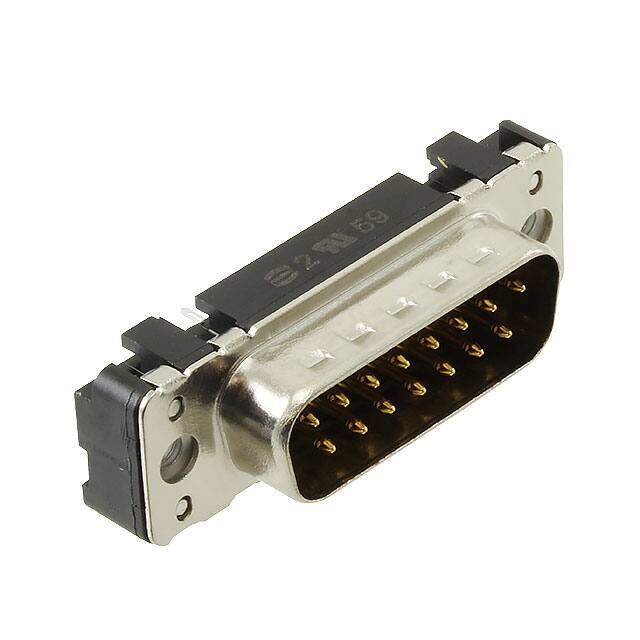

09652216702
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
ROHS3Compliant Straight GENERAL PURPOSE MULTIPLE MATING PARTS AVAILABLE Plug, Male Pins Connector -55C~125C 7.5A 12.5mm
PDF
/
Buying Options
Total Price: USD $5.03
Unit Price: USD $5.0336
≥1 USD $5.0336
≥10 USD $4.56896
≥100 USD $4.32784
≥500 USD $4.025824
≥1000 USD $3.522614
≥3000 USD $3.421968
Inventory: 184
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 39.5mm
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 15
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Number of Rows 2
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Number of Terminations 15
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
