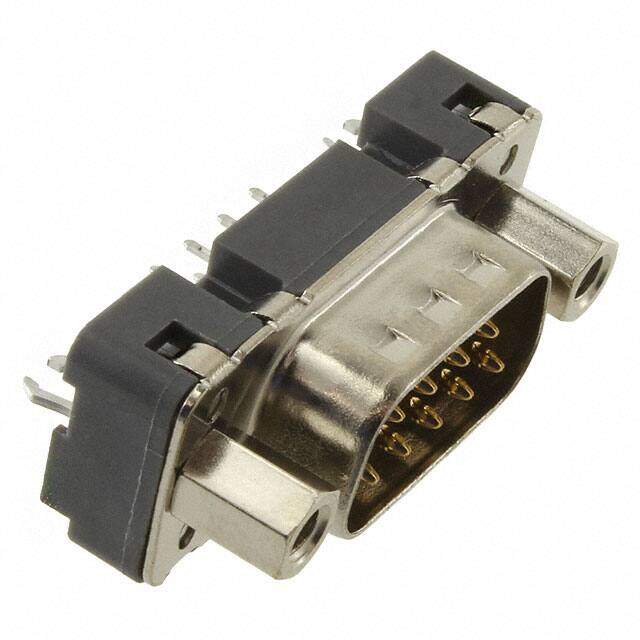

09651696713 image
Favorite
09651696713 image
Favorite

09651696713

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $5.42
Unit Price: USD $5.4208
≥1 USD $5.4208
≥10 USD $4.92272
≥100 USD $4.662592
≥500 USD $4.554176
≥1000 USD $4.337344
≥3000 USD $3.795176
Inventory: 124
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 12.4mm
Length 31.2mm

Technical

Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold
Depth 12.5mm
Orientation Straight
Total Number of Contacts 9
Pitch 2.74mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Gender Male
Number of Rows 2
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 7 Weeks
