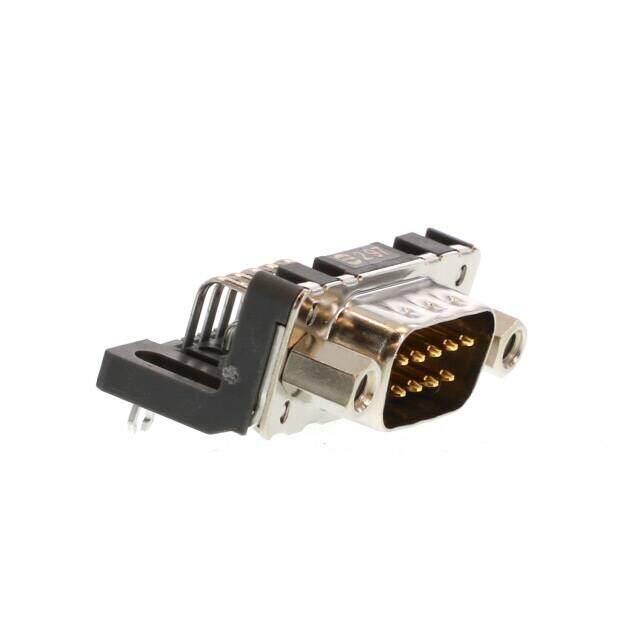

09651676813 image
Favorite
09651676813 image
Favorite

09651676813

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB SV ML SSDP ANG73-284 09P
PDF
/
Buying Options
Total Price: USD $3.53
Unit Price: USD $3.5288
≥1 USD $3.5288
≥10 USD $3.20672
≥100 USD $3.037056
≥500 USD $2.966304
≥1000 USD $2.825064
≥3000 USD $2.486818
Inventory: 167
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Housing Material Glass
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 9
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.409 (10.40mm)

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
