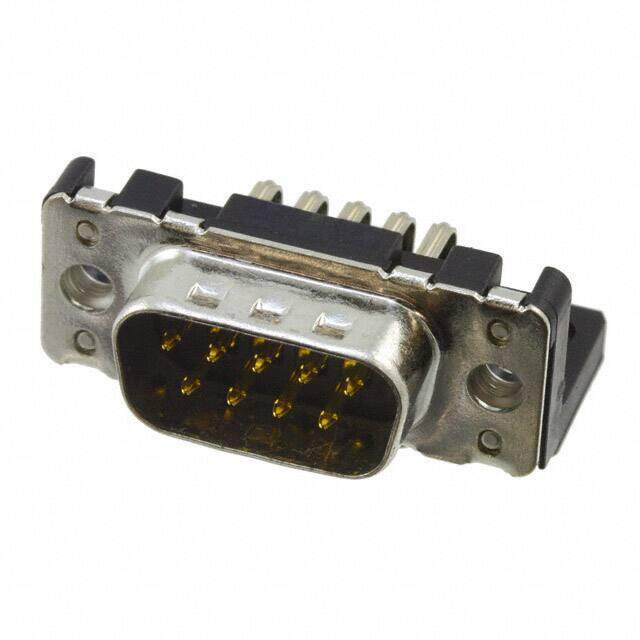

09651627811
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 9POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.62416
≥100 USD $2.48512
≥500 USD $2.427392
≥1000 USD $2.31176
≥3000 USD $2.035
Inventory: 136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder
Connector Type Plug, Male Pins
Number of Rows 2
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.54mm
Total Number of Contacts 9
Orientation Right Angle
Current Rating 7.5A
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (M3)
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.409 (10.40mm)
Dimensions
Height 12.5mm
Length 31.5mm
Width 13.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
