09651626816
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

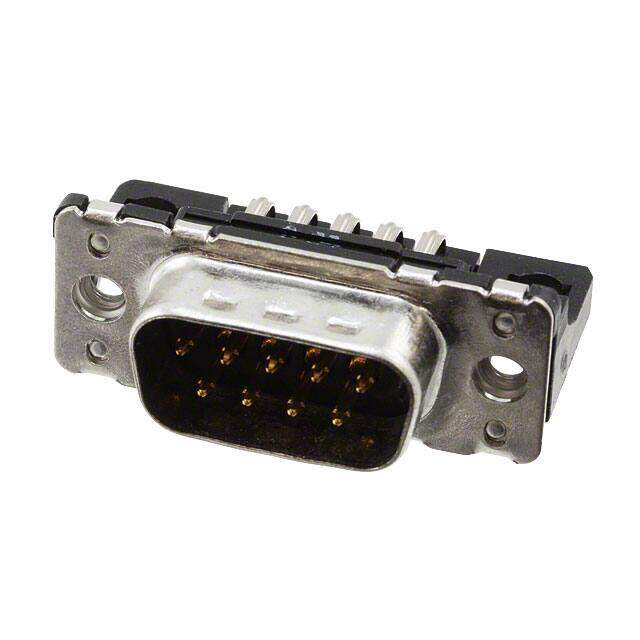

D-Sub Standard Connectors DSUB SV ML SSDP ANG36-254 09P
PDF
/
Buying Options
Total Price: USD $4.82
Unit Price: USD $4.8224
≥1 USD $4.8224
≥10 USD $4.378
≥100 USD $4.14656
≥500 USD $4.050288
≥1000 USD $3.857392
≥3000 USD $3.375214
Inventory: 136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bag
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder
Connector Type Plug, Male Pins
Number of Rows 2
Gender Male
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 9
Orientation Right Angle
Current Rating 6A
Shell Finish TIN
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.409 (10.40mm)
Test Voltage 1kV
Dimensions
Length 31.2mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
