09651626812

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

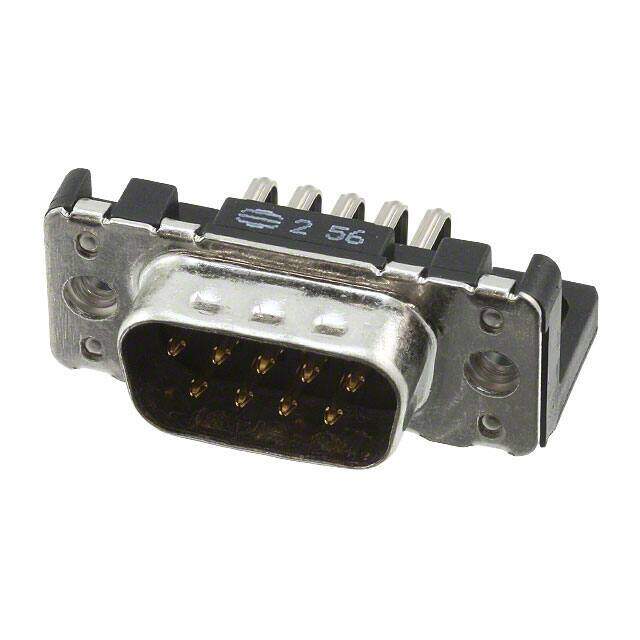

Description 9 Way Right Angle Through Hole Mount PCB D-sub Connector Plug; 2.74mm Pitch
PDF
/
Buying Options
Total Price: USD $4.06
Unit Price: USD $4.0568
≥1 USD $4.0568
≥10 USD $3.68456
≥100 USD $3.489376
≥500 USD $3.40824
≥1000 USD $3.245968
≥3000 USD $2.8402
Inventory: 654
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Body Material Metal
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder
Connector Type Plug, Male Pins
Number of Rows 2
Gender Male
Subcategory D Type Connectors
Voltage - Rated DC 250V
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.54mm
Total Number of Contacts 9
Orientation Right Angle
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.535 inch
Empty Shell NO
Working Voltage 250V
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.409 (10.40mm)
Test Voltage 1kV

Dimensions

Length 31.5mm
Width 13.6mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
