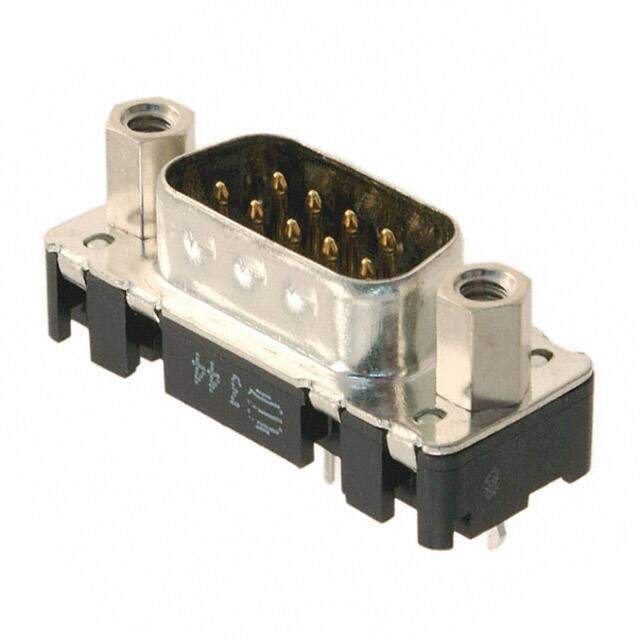

09651617713
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV ML SSDP STR 09P PL3 GC SLK 4-40
PDF
/
Buying Options
Total Price: USD $3.92
Unit Price: USD $3.916
≥1 USD $3.916
≥10 USD $3.55432
≥100 USD $3.366176
≥500 USD $3.288032
≥1000 USD $3.13148
≥3000 USD $2.739994
Inventory: 323
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Package / Case Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 9
Orientation Straight
Depth 12.5mm
Current Rating 7.5A
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Dimensions
Length 31.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
