09651616713
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

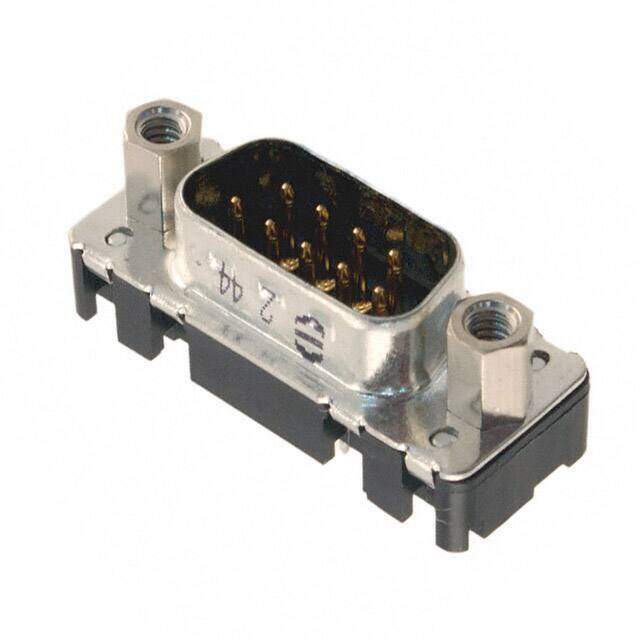

9 Position Dual Row Solder Male Pins Through Hole Plug D-Sub Connector
PDF
/
Buying Options
Total Price: USD $4.37
Unit Price: USD $4.3736
≥1 USD $4.3736
≥10 USD $3.9688
≥100 USD $3.759008
≥500 USD $3.496856
≥1000 USD $3.05976
≥3000 USD $2.972323
Inventory: 149
Minimum: 1
-
+
Technical Details
Technical
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder
Connector Type Plug, Male Pins
Number of Rows 2
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.74mm
Total Number of Contacts 9
Orientation Straight
Depth 12.5mm
Current Rating 7.5A
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Test Voltage 1kV
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Tray
Operating Temperature -55°C~125°C
Dimensions
Length 31.5mm
Width 12.4mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
