09651217701
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

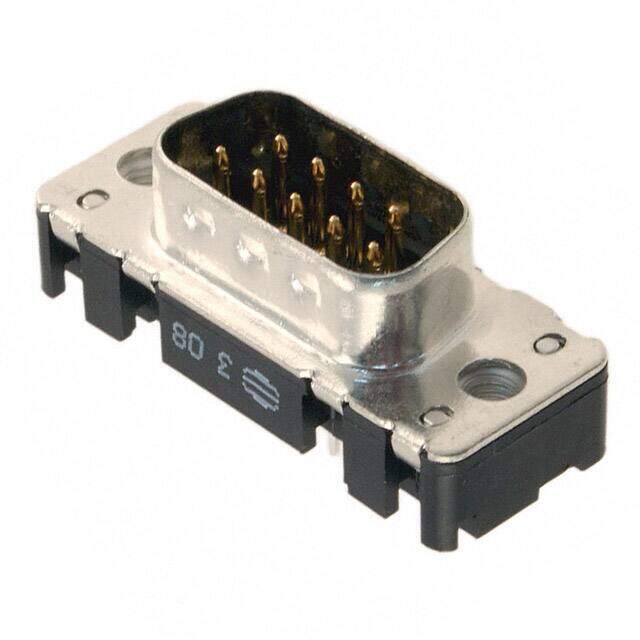

D-Sub Standard Connectors DSUB SV ML SSDP STR 09P PL3 NUT M3
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.516996
≥1 USD $3.516996
≥10 USD $3.317917
≥100 USD $3.130107
≥500 USD $2.952934
≥1000 USD $2.785784
Inventory: 6686
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 31.2mm
Technical
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (M3)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 9
Pitch 2.74mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
Termination Solder
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
