09651216701
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

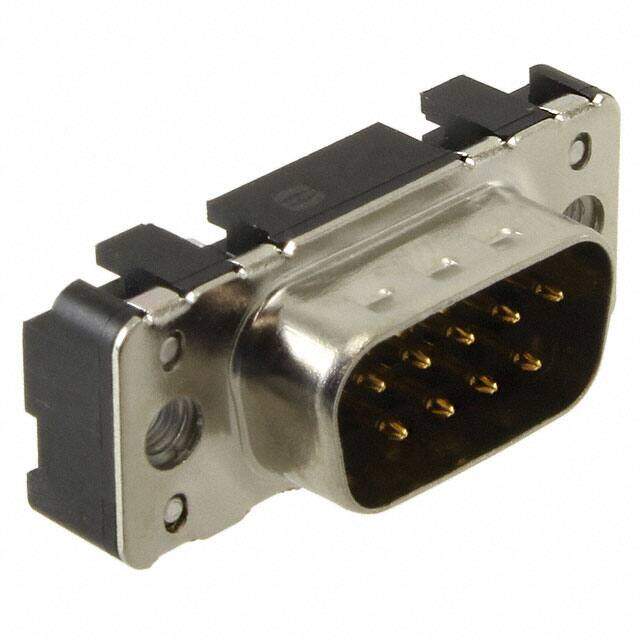

Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.556055
≥1 USD $3.556055
≥10 USD $3.354768
≥100 USD $3.164881
≥500 USD $2.985734
≥1000 USD $2.816726
Inventory: 4598
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Shell Material, Finish Steel, Tin Plated
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 31.2mm
Technical
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (M3)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 9
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Number of Rows 2
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
