09644247242
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

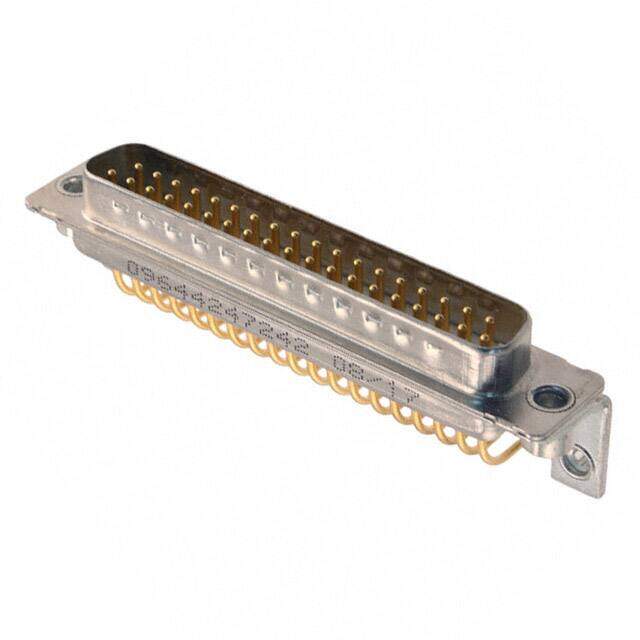

D-Sub Standard Connectors 37P MALE R/A BRDLOCK 3900pf CLINCH NUT
PDF
/
Inventory: 3007
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Housing Material Glass
Shell Material, Finish Steel
Technical
Operating Temperature -20°C~125°C
Packaging Bulk
Feature Board Lock, Filter, Grounding Indents, Mounting Brackets
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 37
Color Natural
Number of Rows 2
Gender Male
Voltage - Rated 100V
Additional Feature PANEL MOUNTABLE
Capacitance 3.9nF
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 37
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Shell Size, Connector Layout 4 DC C
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
