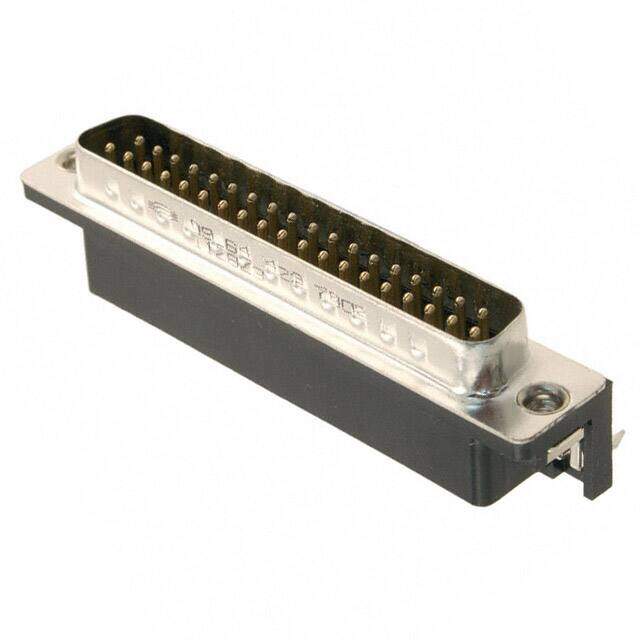

09644237802

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description HARTING 09 64 423 7802 FILTERED D SUB, PLUG, 37 POSITION
PDF
/
Inventory: 7006
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Alloy
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Body Material Steel
Shell Material, Finish Steel, Tin Plated

Technical

Operating Temperature -55°C~105°C
Packaging Tray
Feature Board Lock, Filter, Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 37
Number of Rows 2
Gender Male
Voltage - Rated 250V
HTS Code 8536.69.40.30
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.84mm
Total Number of Contacts 37
Current Rating 7.5A
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 4 DC C

Dimensions

Height 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
