HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

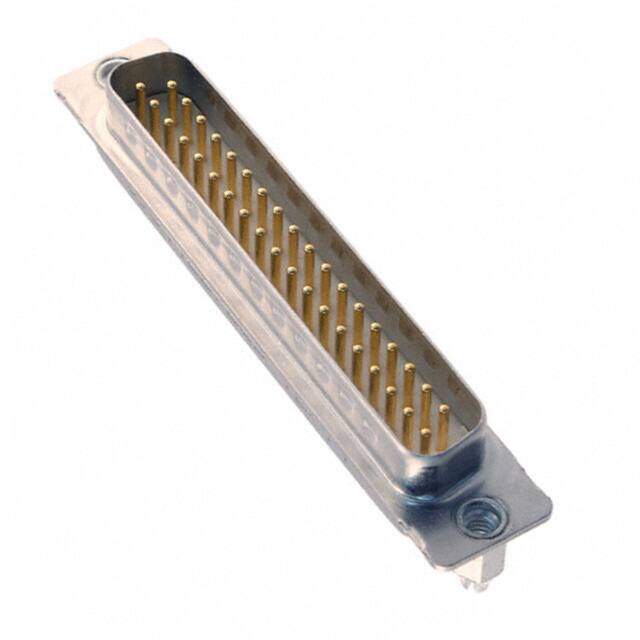

Description CONN D-SUB PLUG 37POS VERT SLDR
PDF
/
Buying Options
Total Price: USD $90.02
Unit Price: USD $90.024
≥1 USD $90.024
≥10 USD $82.60912
≥100 USD $79.431968
≥500 USD $76.7844
≥1000 USD $72.547904
Inventory: 63
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Shell Material, Finish Steel

Technical

Operating Temperature -20°C~125°C
Packaging Bulk
Feature Board Lock, Filter, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 37
Color Natural
Number of Rows 2
Gender Male
Additional Feature PANEL MOUNTABLE
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.84mm
Total Number of Contacts 37
Orientation Straight
Depth 12.5mm
Current Rating 7.5A
Shell Finish TIN
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Board Side (4-40)
Max Supply Voltage 100V
Plating Tin
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 4 DC C

Dimensions

Height 12.5mm
Length 69.3mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
